product description

　　KP501A 4.5th generation mechanical and intelligent ion wind bar is newly developed by Kappel to eliminate static electricity on the surface of the object.

　　The KP501A 4.5th generation mechanical and smart ion wind bar is a static elimination device that is commonly used to eliminate dust absorbed by static electricity. The KP401A 4.5th generation mechanical and intelligent high voltage power supply is required to be used with compressed air and 5.6KV. The length can be customized according to the customer's requirements.

　　KP501A 4.5th generation mechanical and intelligent ion wind bar can produce a large number of air currents with positive and negative charges, which can neutralize the charge on the object. When the surface of the object is negatively charged, it will attract the positive charge in the airflow. When the surface of the object is positively charged, it will attract the negative charge in the airflow, so that the static electricity on the surface of the object is neutralized and eliminated. The purpose of static electricity.

KP501A 4.5th-generation mechanical and intelligent ion wind bar is widely used in sheet material processing, cutting, coiling and other flat areas to eliminate static electricity.

　　Features

　　1, beautiful appearance, fine craftsmanship.

　　2, using aluminum alloy rod, induction electrodeless design, high safety performance.

　　3, in the rapid static electricity, dust removal effect is good.

　　4. Special bar-shaped notches for rod body, the mounting bolts can be moved and convenient.

　　5, built-in unique high air volume trachea.

　　6, wind bar has a good grounding protection.

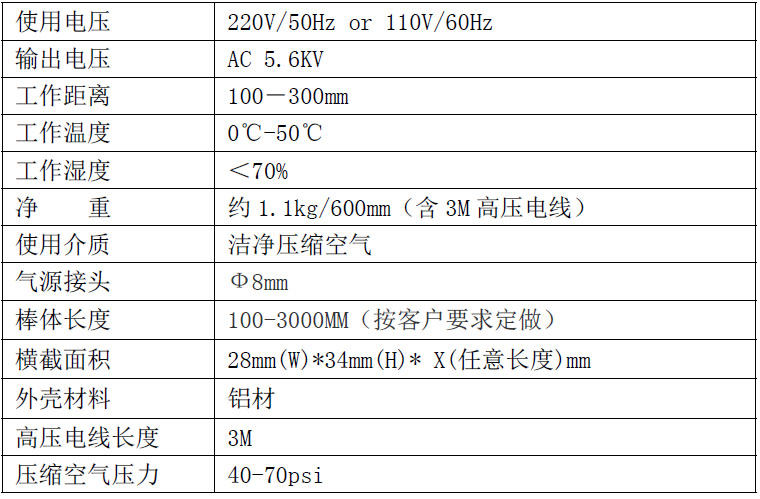

　　Technical Parameters

　　Test Results

　　Safety instructions

　　1. Please read the instruction manual carefully before installing and using this equipment.

　　2. The entire equipment must be grounded reliably during use, otherwise it may easily lead to the burning of the equipment.

　　3. The source of gas that enters the wind bar must be clean air after filtration of moisture, grease, and fine dust.

　　4. It is forbidden to touch the high-voltage ion needle during the working process of the wind bar.

　　5. It is difficult to use the device in a humidity environment of >70%.

　　6. It is forbidden to use this equipment in flammable and explosive environments.

　　7, internal maintenance and repair must be carried out by professionals.

　　Installation and use

　　1, installation and use of guidance:

　　(1) Select the best mounting position for the rod, and move the rod in the slot of the rod to fix the rod on the device.

　　(2) Rods need to be equipped with an operating voltage of 5.6KV. The 4.5th generation mechanical and intelligent high voltage power supplies are used together.

　　(3) Plug the end of the bar connecting wire into the high voltage output jack of the high voltage power supply, turn the grounding coil of the bar connecting wire to the grounding bar on the outside of the high voltage power supply after turning clockwise, and after confirming that the grounding is good, The gas source connector is connected to the air source using a Ф8mm hose.

　　(4) Plug the end of the power cable end into the black socket of the high voltage power supply, and plug the other end of the power cable into a power outlet with a ground wire.

　　(5) Turn on the switch of the gas source of the connecting rod, and then turn on the power switch of the high voltage power supply to eliminate static electricity and dust.

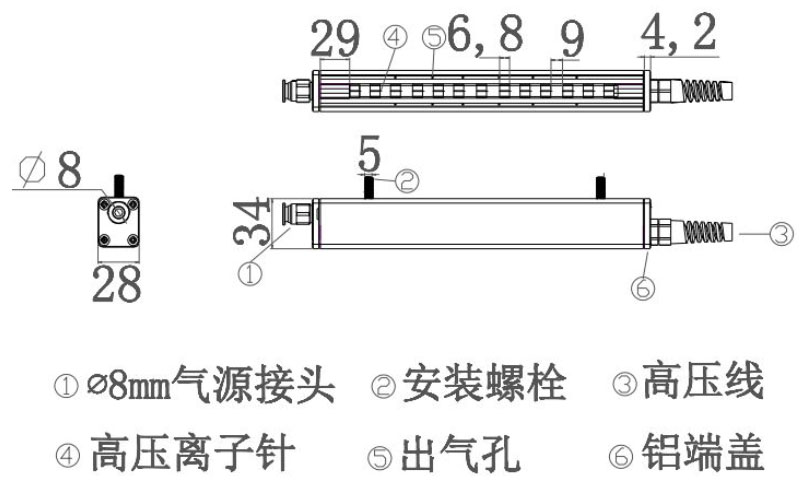

　　2，Dimensions:

　　3, installation method diagram:

　　maintenance

KP501A 4.5th generation mechanical and intelligent ion wind bar is targeted at low maintenance. In order to ensure the good performance of the product, it should be cleaned and maintained in time according to the use environment and the required electrostatic protection requirements. That is: using an electrostatic brush, clean cloth, and cotton swab to distill anhydrous alcohol to gently clean the high-voltage ion needle. Carbon deposits, its performance will be significantly improved.

　　Note:

　　A. It must be operated 10 minutes after the power is turned off.

　　B. When the wind bar is in use, when the needle tip has accumulated dust or white product, it must be cleaned. You can choose to use an electrostatic brush, clean cloth, and cotton swab to distill anhydrous alcohol to gently remove the product on the high-voltage ion needle. Carbon material.

　　C. After cleaning, you must wait for the alcohol to completely evaporate and then work on electricity. Do not use any other organic solvents to clean the rod.

　　Accessories

　　1, manual 2, warranty card certification.

　　Product Warranty and Service

　　1. The KP501A 4.5th generation mechanical and intelligent ion wind bar has undergone rigorous testing, aging and processing before leaving the factory, and the performance fully meets the relevant indicators marked in the instructions for use.

　　2. The Kappal brand promises to the user as follows: Within one year from the date of purchase, the company will repair or replace any parts that have been inspected by the company for defects. However, this commitment does not apply to the following situations: equipment is misused and installed; negligence during use, damage caused by accident; self-modification, disassembly, or repair by other service departments not authorized by the company. The company does not assume any obligation and the related responsibility of the product user. Except for the repair or replacement of parts within this regulation, any product sold by the company is still responsible for the maintenance of the product without any labor cost to protect the interests of the customer.
