product description

　　KP401DC The 4.5th generation mechanical and intelligent power supply is the latest intelligent alarm and static electricity supply device developed by Kappel to eliminate surface static electricity.

　　KP401DC 4.5th generation mechanical and intelligent power supply is the use of high-voltage transformers to boost the power frequency voltage to the required voltage, for the output of two groups of high-voltage power supply, for ion air gun, ion wind bar and other static elimination products. Taking into account safety issues, the maximum short-circuit current output from all power supply products does not exceed 5 mA. The supply voltage of the power supply can use the transfer switch to select 110V and 220V as the supply voltage.

　　KP401DC 4.5th generation mechanical and intelligent power supplies are used in electronics, LED optoelectronics, printing, packaging, coating production lines and other industries.

　　Features

　　1, smart and modern, beautiful appearance, fine production, innovative design.

　　2, with high-pressure fault wind alarm and indicator alarm function.

　　3, quick release jack, easy to install.

　　4, small size, simple operation, strong adaptability to the environment.

　　5, the power supply has a good grounding protection.

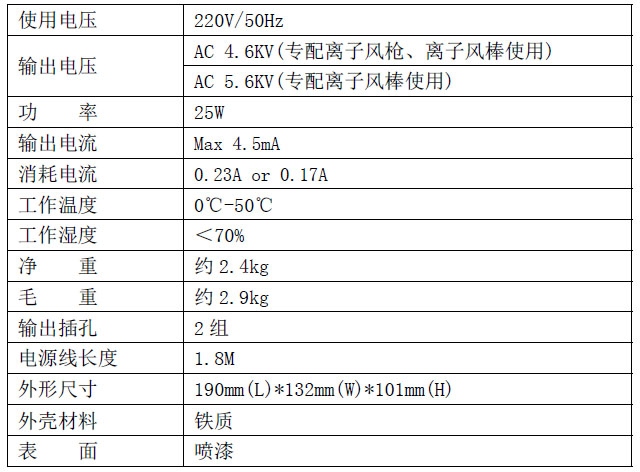

　　Technical Parameters

Safety instructions

　　1. Please read the instruction manual carefully before installing and using this equipment.

　　2. The entire equipment must be reliably grounded during use, otherwise it may easily lead to the equipment being burned.

　　3. It is difficult to use the device in >70% humidity environment.

　　4. It is forbidden to use this device in flammable and explosive environments.

　　5, internal maintenance and repair must be carried out by professionals.

　　Installation and use

　　1, installation and use of guidance:

　　(1) Select the best installation location, place the power supply in the installation position, position and punch holes according to the holes on the left and right sides of the power supply housing, and fix them in the installation position with screws.

　　(2) Plug the end of the power cable end into the black socket of the high voltage power supply, and plug the other end of the power cable into a power outlet with a ground wire. Connect the static elimination device and turn on the power switch to work.

　　2，Dimensions:

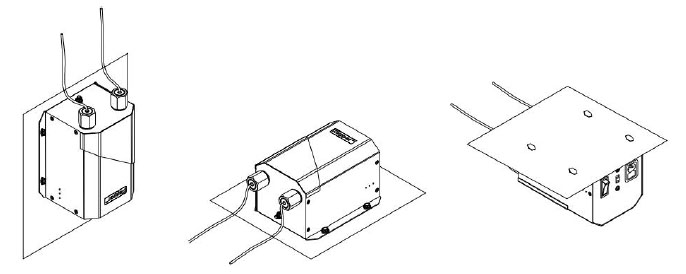

　　3, installation method diagram:

maintenance

　　The KP401DC power supply is targeted at low maintenance. When the power supply is idle, turn off the power switch to avoid power consumption and affect product life.

　　Accessories

　　1, manual 2, warranty card certification 3, power cable.

　　Product Warranty and Service

　　1. KP401DC The 4.5th generation mechanical and intelligent power supply has passed strict inspection, inspection and aging before leaving the factory, and the performance fully meets the relevant indicators marked in the instructions for use.

　　2. The Kappal brand promises to the user as follows: Within one year from the date of purchase, the company will repair or replace any parts that have been inspected by the company for defects. However, this commitment does not apply to the following situations: equipment is misused and installed; negligence during use, damage caused by accident; self-modification, disassembly, or repair by other service departments not authorized by the company. The company does not assume any obligation and the related responsibility of the product user. In addition to the components or replacements within this regulation, any product sold by the company is still responsible for repairing the product without labor costs in order to protect the interests of customers.
